iVGR: Internalizing Visually Grounded Reasoning for MLLMs with Reinforcement Learning

1/3 Paradigm 1 (crop tools): the model “thinks with images”, calling a tool to crop regions.

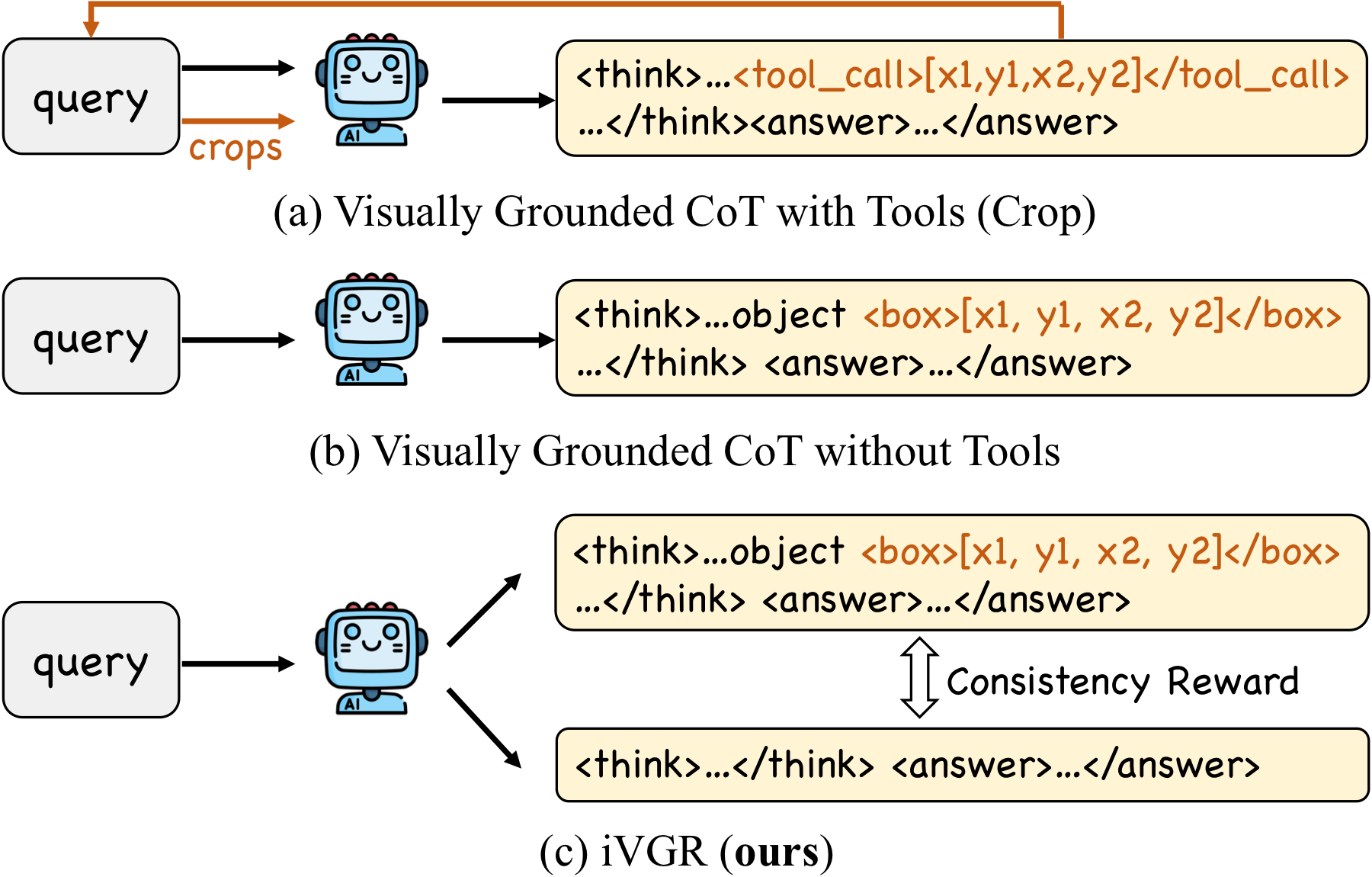

Three paradigms of visually grounded reasoning. (a) grounded CoT with crop tools, (b) grounded CoT with explicit boxes, and (c) iVGR (ours), which aligns a grounded and a textual stream through a consistency reward and reasons in pure text at inference.

Abstract

Visually grounded chain-of-thought has emerged as a promising paradigm to enhance fine-grained perception in MLLMs. However, we empirically find that mandating explicit object boxes during inference often degrades performance compared to standard textual CoT. We hypothesize that visual localization capability can be internalized into the textual CoT, and that mandatory explicit grounding introduces unnecessary task interference. We propose iVGR, a reinforcement learning framework that transfers localization capability into the textual reasoning process through a dual-stream training strategy: a textual stream is aligned with a high-quality grounded stream via a novel consistency reward. Extensive experiments show iVGR significantly outperforms existing baselines on fine-grained benchmarks, while remaining compatible with tool-assisted inference workflows.

Key Insight

Textual CoT can outperform Grounded CoT

Takeaway Explicit grounding at inference is not necessary, and can even hurt. iVGR is designed to internalize this localization capability into textual reasoning.

Off-the-shelf models trained with visually grounded CoT (DeepEyes, TreeVGR) actually perform better when we simply switch to textual CoT at inference, without any retraining.

Benchmarks	Qwen2.5-VL-7B	DeepEyes-7B		TreeVGR-7B
Benchmarks	Textual CoT	Grounded CoT	Textual CoT	Grounded CoT	Textual CoT
V*	78.5	82.7	81.7	83.8	84.3
HRBench4K	69.0	75.1	74.9	77.1	76.9
HRBench8K	65.1	72.6	73.1	73.1	74.7
MME-RealWorld-Lite	44.5	53.2	53.5	54.9	54.7
POPE	86.3	87.7	89.2	87.3	88.4
RealWorldQA	68.1	69.4	69.7	67.3	69.5
CV-Bench-2D	75.7	75.0	77.9	76.6	77.7
CV-Bench-3D	73.6	77.3	80.8	77.2	79.3
Avg.	70.1	74.1	75.1	74.7	75.7

Why?

When does grounding actually help?

We bucket questions by the IoU of the model's grounded region (HRBench8K) and compare answering with explicit grounding / crops against plain textual CoT.

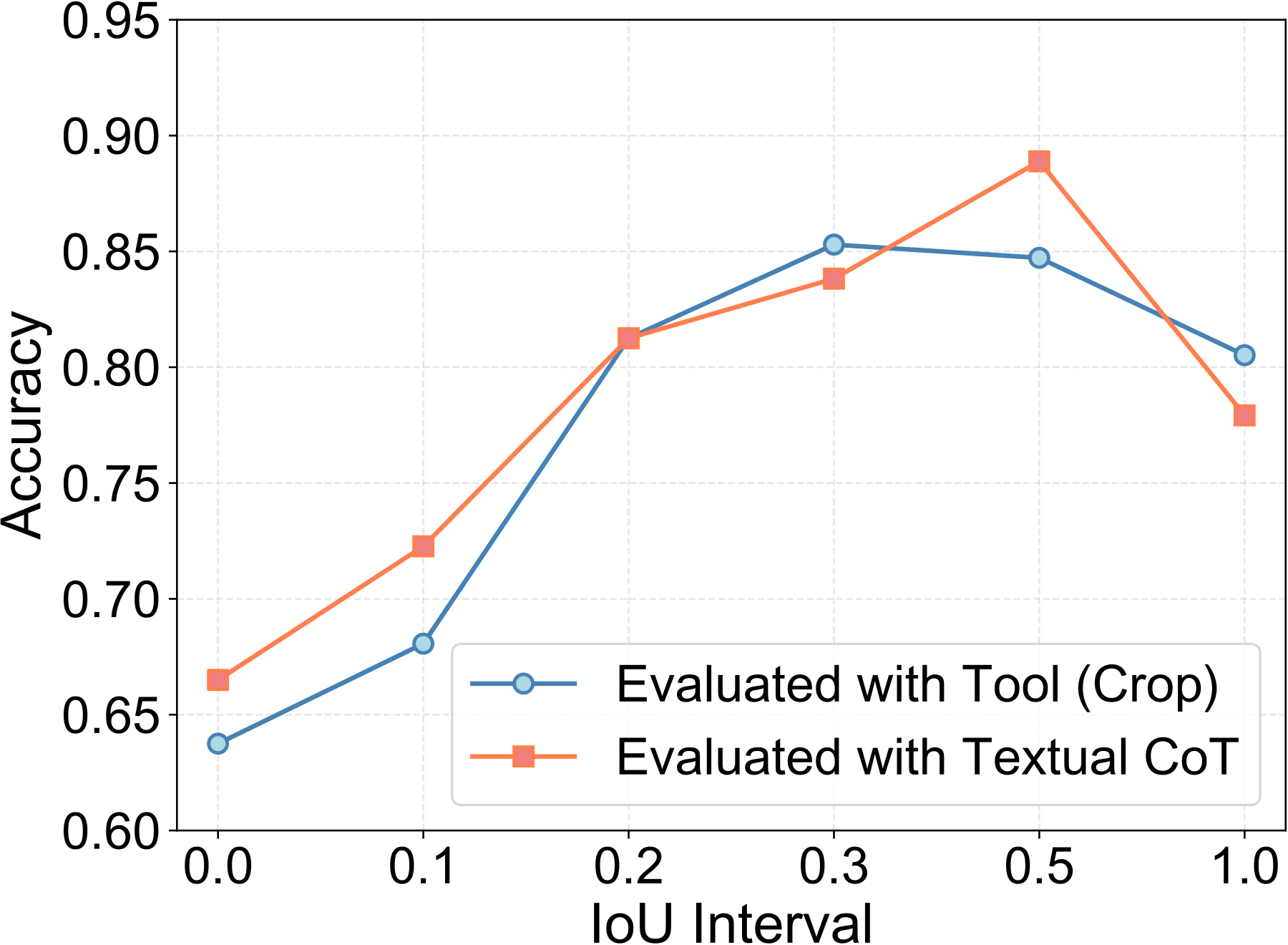

Accuracy vs. IoU interval for DeepEyes: tool crops vs. textual CoT.

DeepEyes (crop tool). Textual CoT matches or beats tool-based cropping at low IoU; crops only pull ahead when they are accurate; bad crops inject noise.

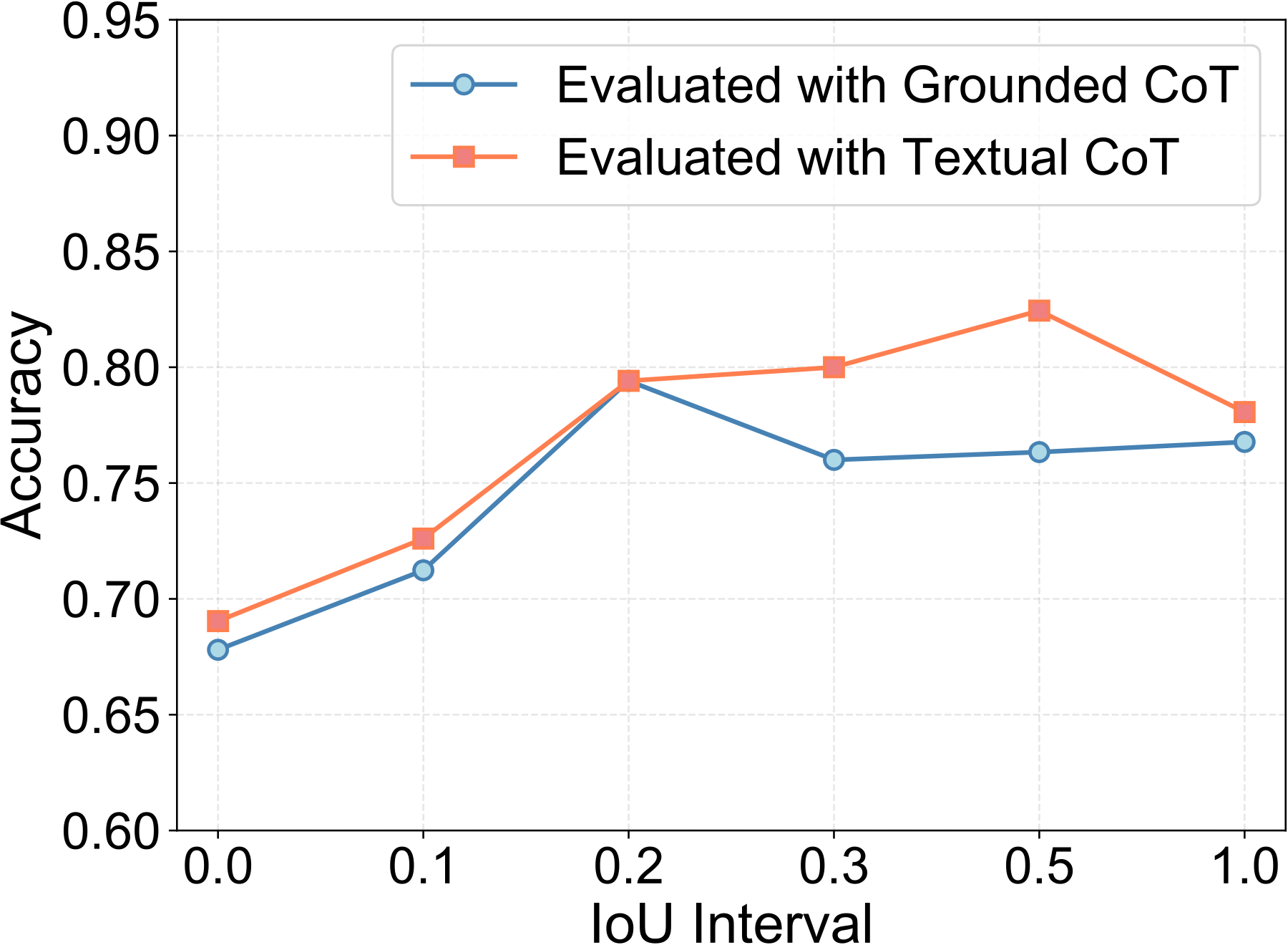

Accuracy vs. IoU interval for TreeVGR: grounded CoT vs. textual CoT.

TreeVGR (explicit boxes). Textual CoT is on par or better than grounded CoT across every IoU interval.

Insight Forcing explicit localization at inference helps only when it is highly accurate, and often interferes with answering. Better to internalize localization during training and reason in pure text at inference.

Method

Dual-Stream RL with a Consistency Reward

For each query, the policy MLLM rolls out a grounded stream (explicit boxes) and a textual stream (plain reasoning). A consistency reward, scored by an LLM judge against the best grounded rollout in a rollout archive, transfers localization into the textual stream, so no coordinates are needed at inference.

1/6 Each query is rolled out by the policy MLLM under both prompts.

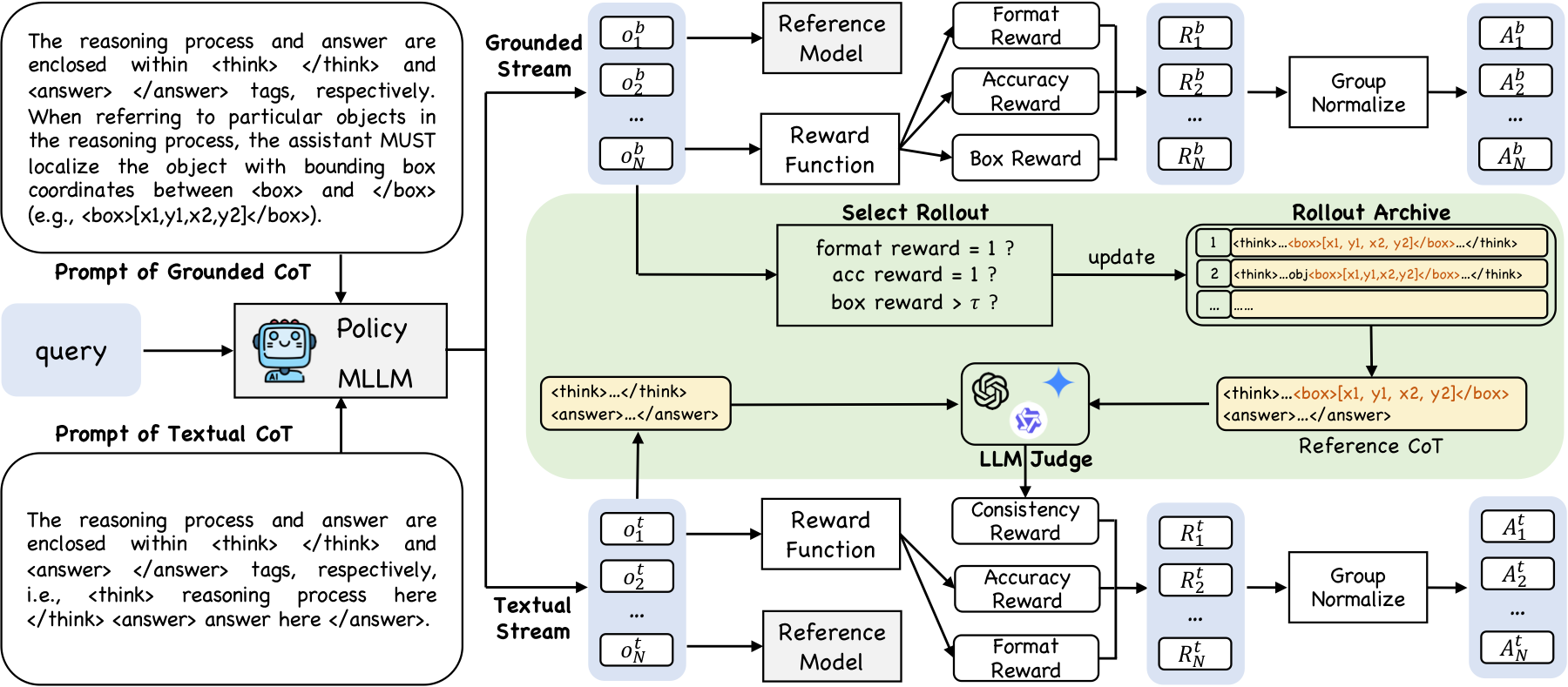

Dual-stream training. The grounded stream is rewarded by format / accuracy / box-IoU; the textual stream by format / accuracy / consistency. The consistency reward is computed by an LLM judge (Qwen2.5-72B) against the best grounded rollout archived per query, transferring localization from the grounded stream into the textual stream without exposing coordinates at inference.

Training

Cold-Start, then Reinforcement Learning

A two-stage recipe: cold-start SFT to seed both answer formats, then GRPO over grounding-rich and general-reasoning data.

Cold-start (SFT) 35K

Seeds both the grounded and textual answer formats before RL.

32K grounded CoT · box annotations 3K textual CoT · Qwen2.5-VL-72B

GRPO RL 51K

37K with target boxes from TreeVGR, for grounding:

32K V* · high-res scenes 5K VisDrone · small objects

14K general reasoning:

12K OpenMMReasoner 2K ArxivQA

Results

State of the Art Without Boxes at Inference

Takeaway (a) State-of-the-art on fine-grained and general VQA. (b) Still compatible with crop tools; test-time scaling further boosts fine-grained accuracy.

Model	Tool	Fine-grained VQA			General VQA					Avg.
Model	Tool	V*	HR4K	HR8K	MME-RW-L	POPE	RWQA	CV-2D	CV-3D	Avg.
Proprietary Models
Gemini-3.1-Pro-Preview	—	87.4	88.9	88.1	55.8	88.0	83.5	85.0	94.6	83.9
GPT-5.4	—	88.0	87.4	80.6	63.4	87.9	83.0	82.4	91.9	83.1
Open-source General Models
LLaVA-OneVision-7B	✗	72.8	64.6	57.9	48.2	88.3	69.5	72.9	76.9	68.9
InternVL3-8B	✗	70.2	70.0	69.3	48.6	90.3	71.0	80.6	86.1	73.3
Qwen2.5-VL-7B	✗	78.5	69.0	65.1	44.5	86.3	68.1	75.7	73.6	70.1
Qwen2.5-VL-32B	✗	80.1	73.0	69.5	46.3	86.5	70.1	76.7	84.5	73.3
Qwen2.5-VL-72B	✗	85.9	79.9	76.8	45.2	86.3	76.1	78.4	87.2	77.0
Qwen3-VL-4B	✗	78.5	77.8	71.1	48.3	89.3	71.2	78.7	91.7	75.8
Qwen3-VL-8B	✗	82.7	76.5	70.4	49.0	88.1	70.5	78.6	93.5	76.2
Qwen3-VL-32B	✗	83.8	80.0	78.1	52.1	89.4	79.3	81.2	92.8	79.6
Visually Grounded Reasoning Models
GRIT-3B	✗	54.5	48.4	43.5	33.8	80.8	58.0	72.5	68.2	57.5
Pixel-Reasoner-7B	✓	—	72.9	66.9	49.7	—	—	—	—	—
DeepEyes-7B	✓	82.7	75.1	72.6	53.2	87.7	69.4	75.0	77.3	74.1
DeepEyesV2-7B	✓	81.8	77.9	73.8	—	—	—	—	—	—
Mini-o3-7B	✓	—	77.5	73.3	—	—	—	—	—	—
Thyme-7B	✓	82.2	77.0	72.0	55.2	86.8	70.2	78.0	75.1	74.6
TreeVGR-7B	✗	83.8	77.1	73.1	54.9	87.3	67.3	76.6	77.2	74.7
iVGR-Qwen2.5-VL-7B (ours)	✗	86.4	78.3	75.5	55.6	88.9	68.6	78.4	81.1	76.6
Δ vs. Qwen2.5-VL-7B		+7.9	+9.3	+10.4	+11.1	+2.6	+0.5	+2.7	+7.5	+6.5
iVGR-Qwen3-VL-8B (ours)	✗	90.1	82.0	80.1	60.7	89.4	71.0	80.8	91.0	80.6
Δ vs. Qwen3-VL-8B		+7.4	+5.5	+9.7	+11.7	+1.3	+0.5	+2.2	-2.5	+4.4
iVGR-Qwen3-VL-32B (ours)	✗	93.2	82.9	82.9	61.2	88.8	76.3	83.9	93.8	82.9
Δ vs. Qwen3-VL-32B		+9.4	+2.9	+4.8	+9.1	-0.6	-3.0	+2.7	+1.0	+3.3

Chart Understanding & Multidisciplinary Reasoning

Model	Chart Understanding		Multidisciplinary Reasoning				Avg.
Model	ChartQA	AI2D	WeMath	MMStar	MMMU	MMK12	Avg.
Qwen2.5-VL-7B	86.4	83.6	35.3	63.9	54.4	53.6	62.9
iVGR-Qwen2.5-VL-7B	88.5	85.0	41.1	66.3	55.2	56.3	65.4 (+2.5)
Qwen3-VL-8B	83.2	80.4	49.7	67.9	58.0	60.4	66.6
iVGR-Qwen3-VL-8B	87.6	85.5	55.1	69.7	59.8	61.6	69.9 (+3.3)
Qwen3-VL-32B	85.0	84.5	60.0	72.3	67.7	73.9	73.9
iVGR-Qwen3-VL-32B	90.4	88.7	61.6	75.1	67.7	75.2	76.5 (+2.6)

Tool-Assisted Test-Time Scaling

Generate a grounded CoT once, crop each predicted box plus a union crop, then answer with textual CoT.

Model	V*	HR4K	HR8K	Avg.
Qwen2.5-VL-7B	78.5	69.0	65.1	70.9
iVGR-7B	86.4	78.3	75.5	80.1
iVGR-7B + crops	89.0	79.4	76.3	81.6
iVGR-7B + union crop	89.0	79.9	75.8	81.6
iVGR-7B + crops + union	90.1	81.8	76.3	82.7
Qwen3-VL-8B	82.7	76.5	70.4	76.5
Qwen3-VL-8B + tool	90.1	82.3	78.0	83.5
iVGR-8B	90.1	82.0	80.1	84.1
iVGR-8B + crops	89.5	83.5	78.0	83.7
iVGR-8B + union crop	92.7	84.5	78.8	85.3
iVGR-8B + crops + union	93.2	84.3	79.3	85.6

Analysis

What Actually Drives the Gains?

Takeaway The consistency reward + rollout archive deliver the gains. A dual-stream setup alone barely helps (71.0 vs. 71.1).

Average of 5 benchmarks; all RL variants start from the same cold-start. Bars are scaled for contrast; labels are the true scores.

Cold-start SFT

67.1

GRPO · textual stream only

69.1

GRPO · grounded stream only

71.1

Dual-stream · no consistency

71.0

+ consistency reward

71.5

+ rollout archive (full iVGR)

72.4

Qualitative

Qualitative Results

Takeaway Grounded CoT suffers two failure modes: (a) localization errors that lead to wrong answers, and (b) accurate localization paired with recognition failures.

Grounded CoT vs. textual CoT within iVGR. Left: the grounded CoT misses objects and undercounts, while the textual CoT enumerates correctly. Right: the grounded CoT localizes well but misreads the label, while the textual CoT, freed from emitting coordinates, correctly recognizes the hazard numbers.

With vs. without the consistency reward.

Effect of the consistency reward. Without it, the textual stream mis-localizes the trailer and reports the wrong color. iVGR attends to the correct region and recovers the right answer.

Conclusion

Takeaways

✓Grounding at inference is unnecessary; internalize it during training.

✓SOTA performance benefits from a dual-stream design aligned by a consistency reward.

✓Tool-compatible: still works well with “think with images” pipelines.

Cite

BibTeX

@inproceedings{zhang2026ivgr,
  title     = {iVGR: Internalizing Visually Grounded Reasoning for MLLMs with Reinforcement Learning},
  author    = {Zhang, Chang-Bin and Zhong, Yujie and Zhang, Qiang and Han, Kai},
  booktitle = {International Conference on Machine Learning (ICML)},
  year      = {2026}
}
